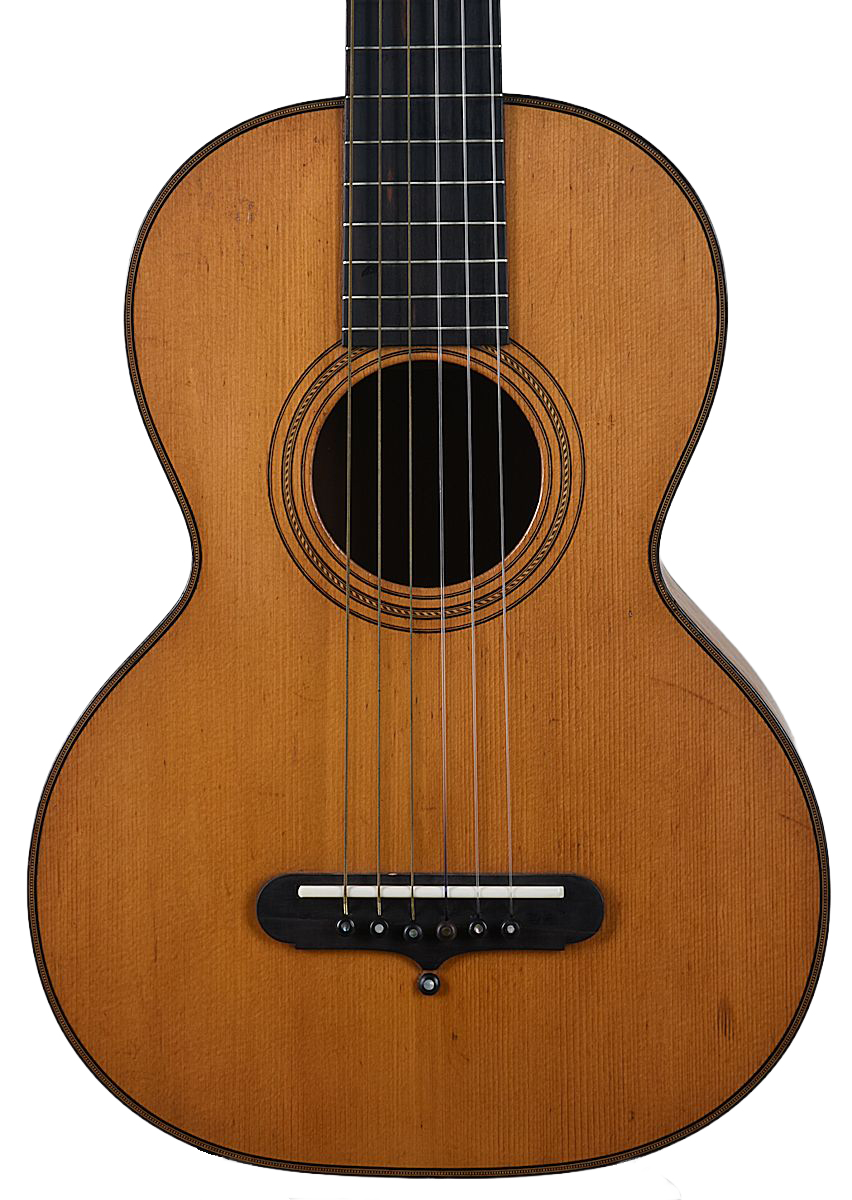

c. 1842 Martin Birds Eye Terz Guitar
This guitar was likely built at close to the same time as the Goncalo Alves "Tigerwood" Martin and Coupa above but with three differences.
It is a smaller "Terz" guitar, tuned a minor third above standard pitch.

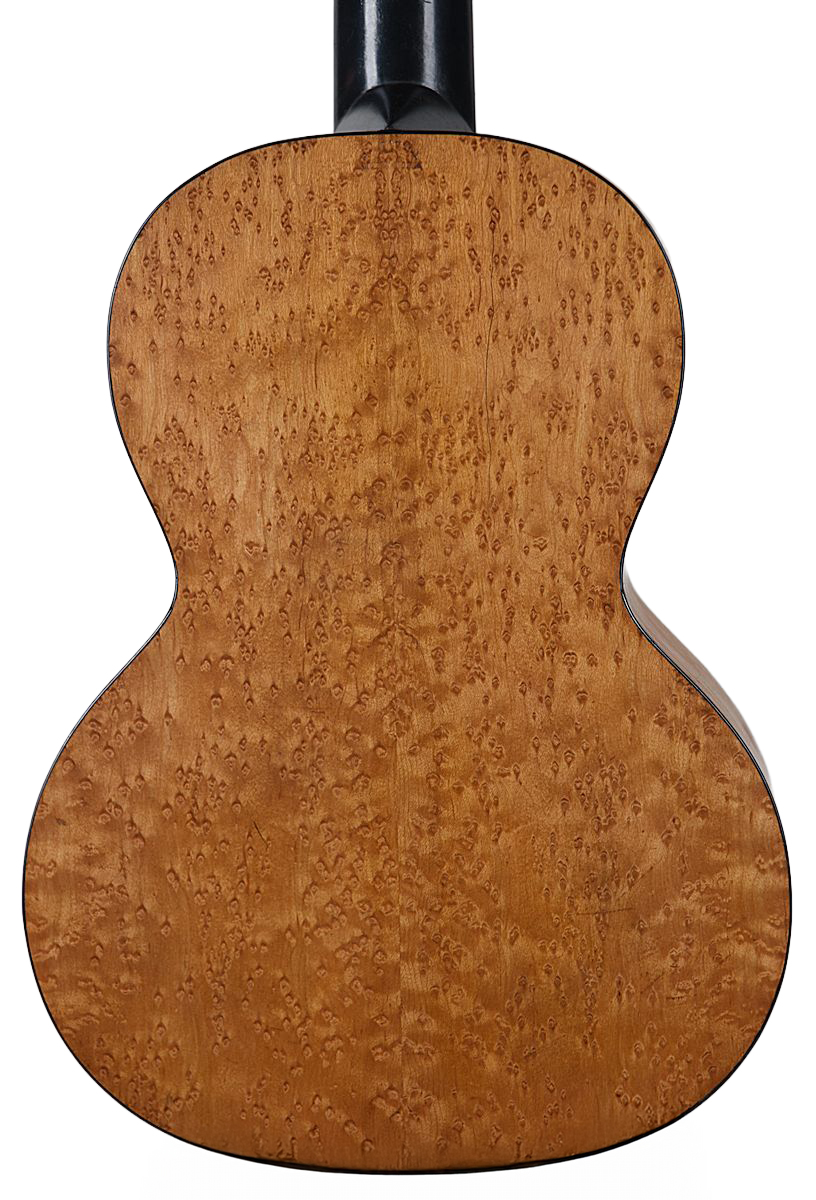

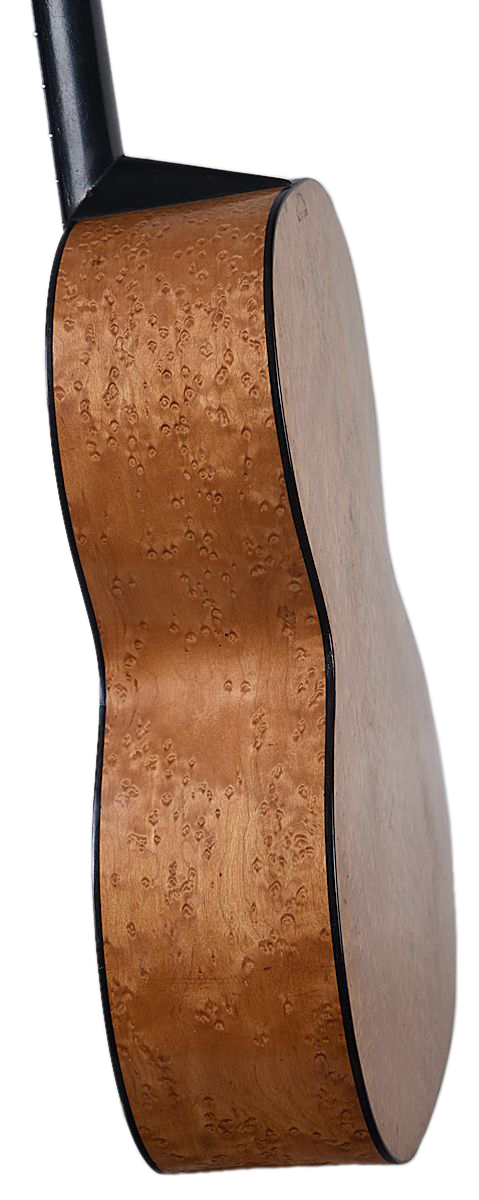

It was built with a bird's eye maple veneer over mahogany rather than Goncoa Alves.
It has a single "C. F. Martin New York" stamp on the back in place of the Martin & Coupa label.
The Terz is a small guitar, still made by Martin today, and made popular in the 1950's and 60's by Marty Robbins.
The dimensions are:
22 1/8" scale
18 1/4" body length
11 3/8" body width
32" total length
3 3/8" depth at upper bout
3 3/4" depth at lower bout
1 3/4" nut width
2 5/16" string spacing
4 29/32" wide bridge
6" x 1 7/8" x 3" headstock
3 1/4" soundhole
Ebony pegs
Ice Cream Cone heel
Black binding

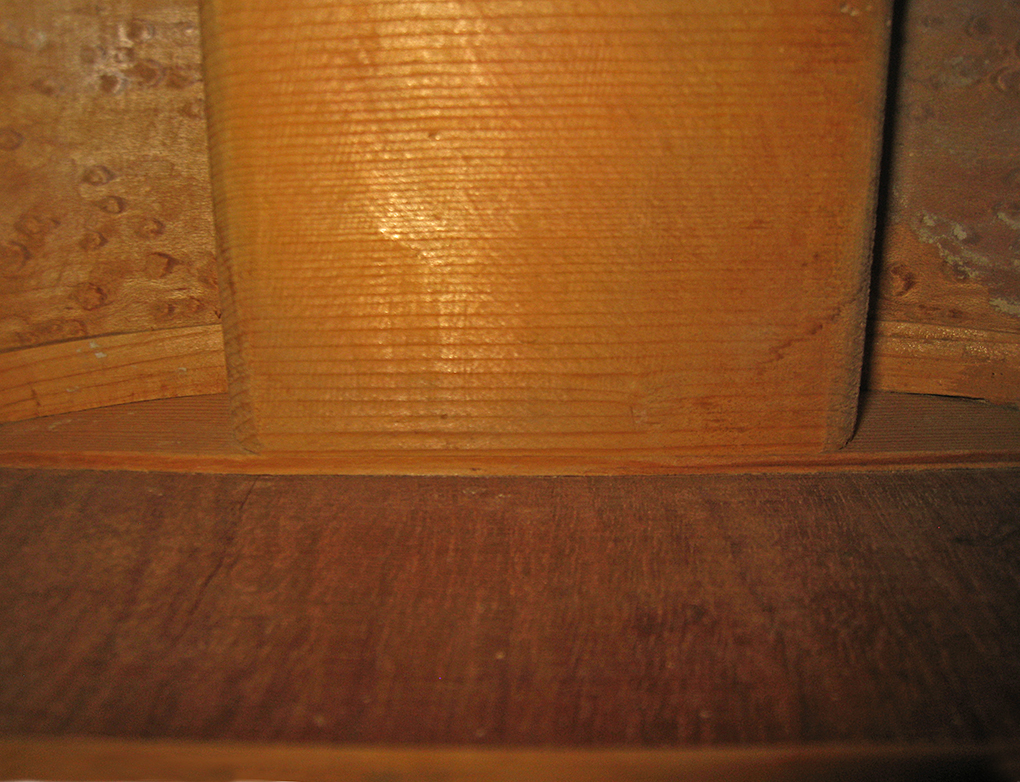

Broad foot under wide rounded neck block
Three rounded back braces at 4", 3 3/4", 3 3/4"
Three strut fan braces

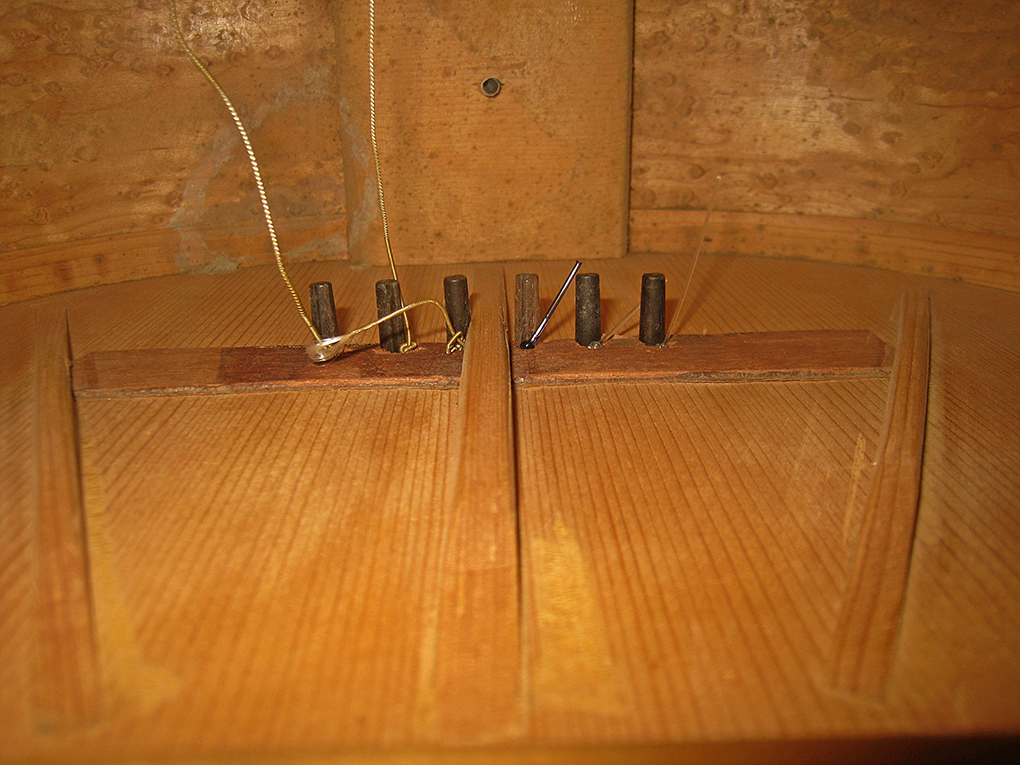

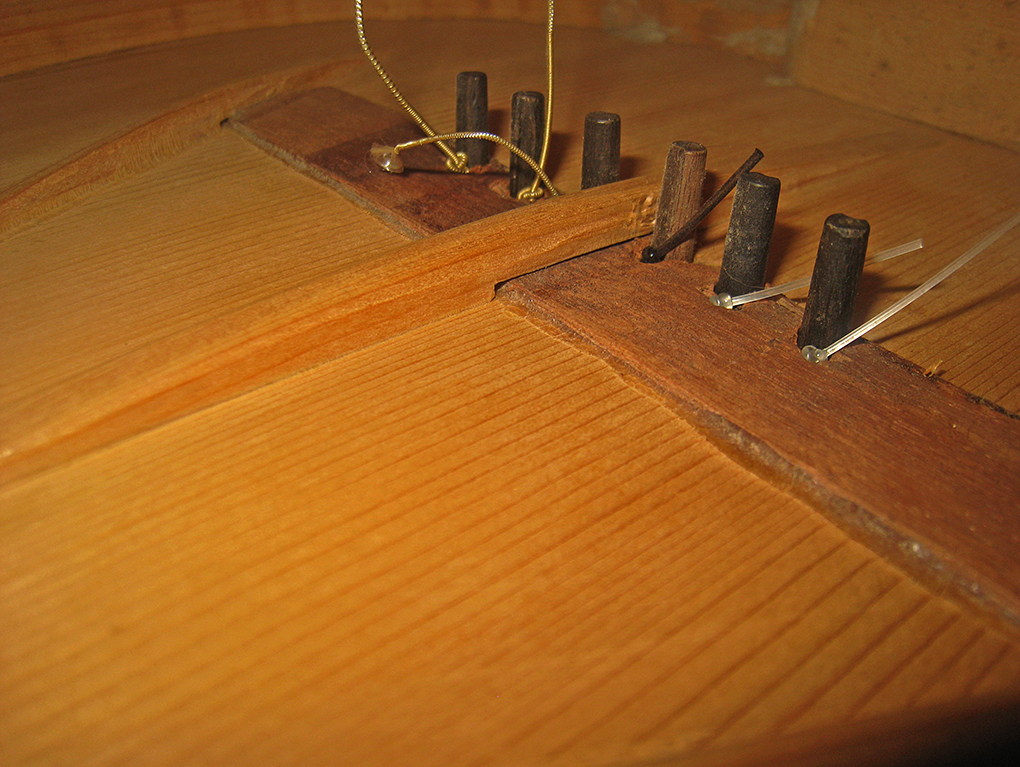

Bridge plate
While this guitar was build at approximately the same time as the Martin & Coupa, the Martin & Coupa label was used only on guitars distributed from New York by John Coupa while Martin was also selling a smaller number of guitars directly from the workshop at their new home in Cherry Hill, Pennsylvania.
Illustrated in "Inventing the American Guitar: The Pre–Civil War Innovations of C. F. Martin and His Contemporaries"
